5000L Per Hour Purified Water System In Pharmaceutical Industry EDI Water Treatment Plant
Reverse Osmosis Ro System Water Features
High-precision filter, the pore size is nanometer, the best water quality Automatic switching of manual/electric control system; With self-check
function, automatic boiling water system without water point, water full stop, no pressure protection and other safety devices; With open RO
membrane automatic cleaning and automatic double cleaning of the water tank, it can extend the service life of the RO membrane; With online
water quality monitoring (conductivity display), flow and pressure online display functions;Equipment integration, simple installation, simple
operation, no special responsibilities; Equipment failure has an automatic alarm function;
High water production, high desalination rate and long service life;
Core components (pumps, reverse osmosis membranes, electronic control systems, etc.) imported/domestic joint venture brands; The equipment
rack is made of stainless steel, the low-pressure pipe is made of UPVC, and the high-pressure pipe is made of SUS304 stainless steel.
Specification
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | Domestic PUROLITE,Rohm Hass | |||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. |
|||
What is ro plant?
RO plant is raw water through precision filter, granular activated sand filters, activated carbon filters, compression, and then the pump pressure, the use of (ro) reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.
What is EDI?
Electrodialysis technology and ion exchange technology, through the cation, anion membrane on the choice of positive and negative ions through the role of ion exchange resin on the exchange of ions in the water under the action of the electric field to achieve the migration of ions in the water, which can achieve a deep water purification desalination, and through the water electrolysis of hydrogen ions and hydroxide ions on the packaging resin for continuous regeneration.
Flow chart

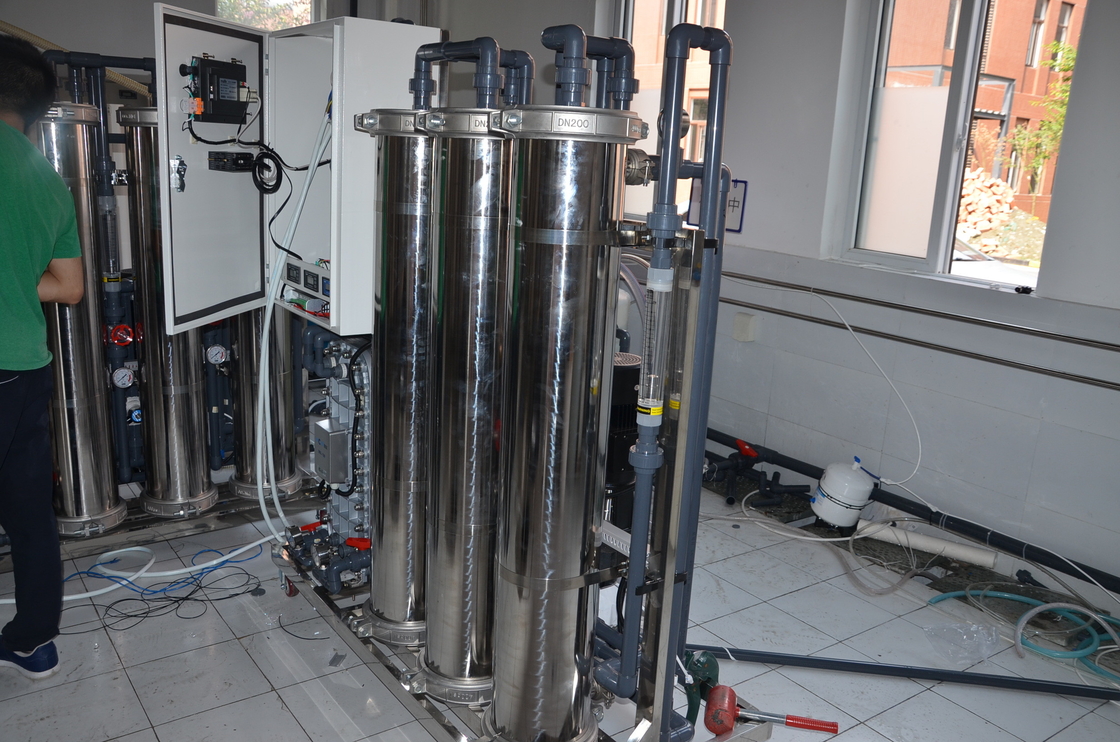

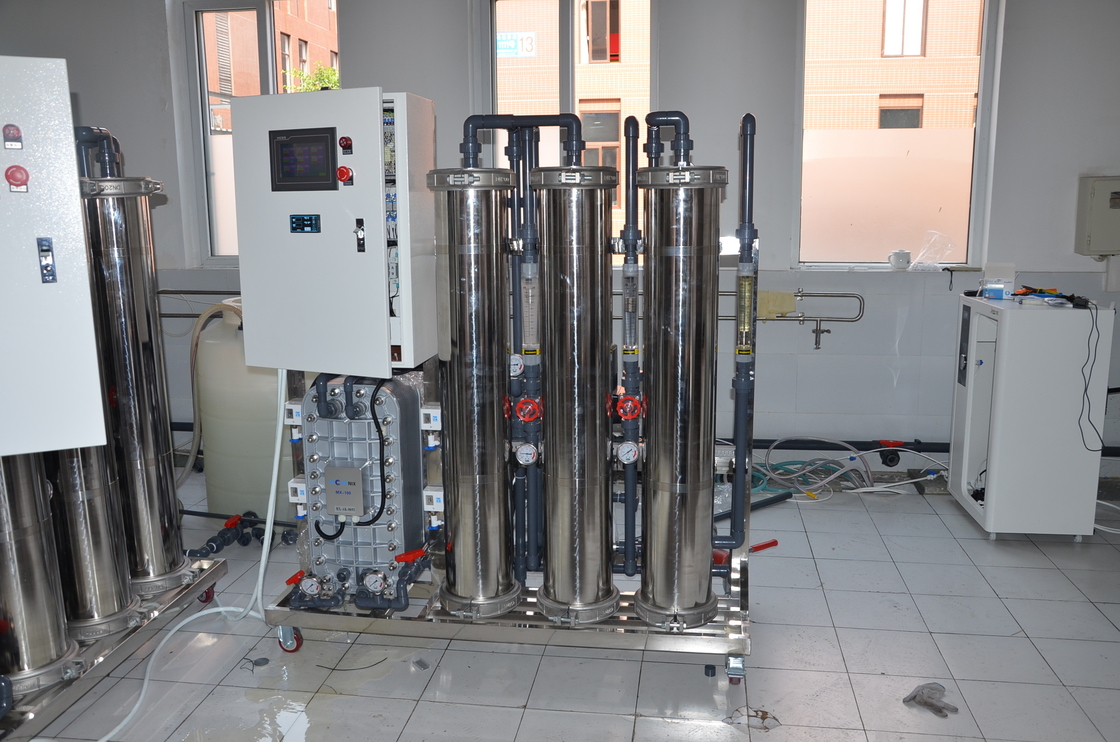

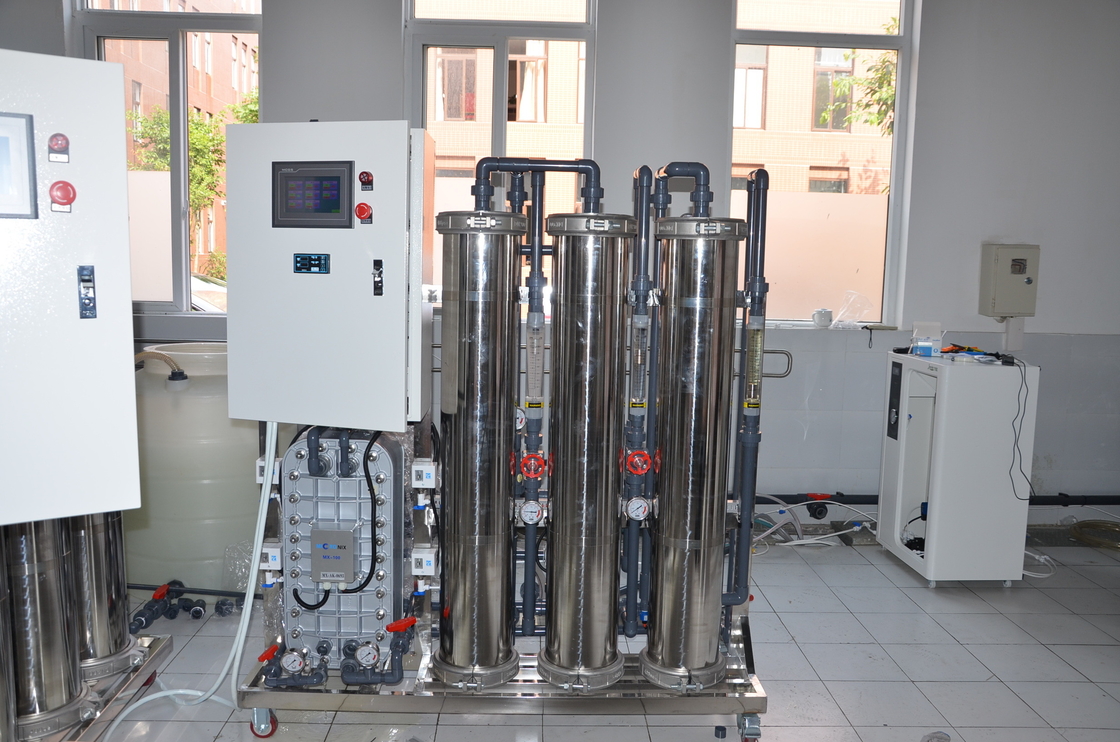

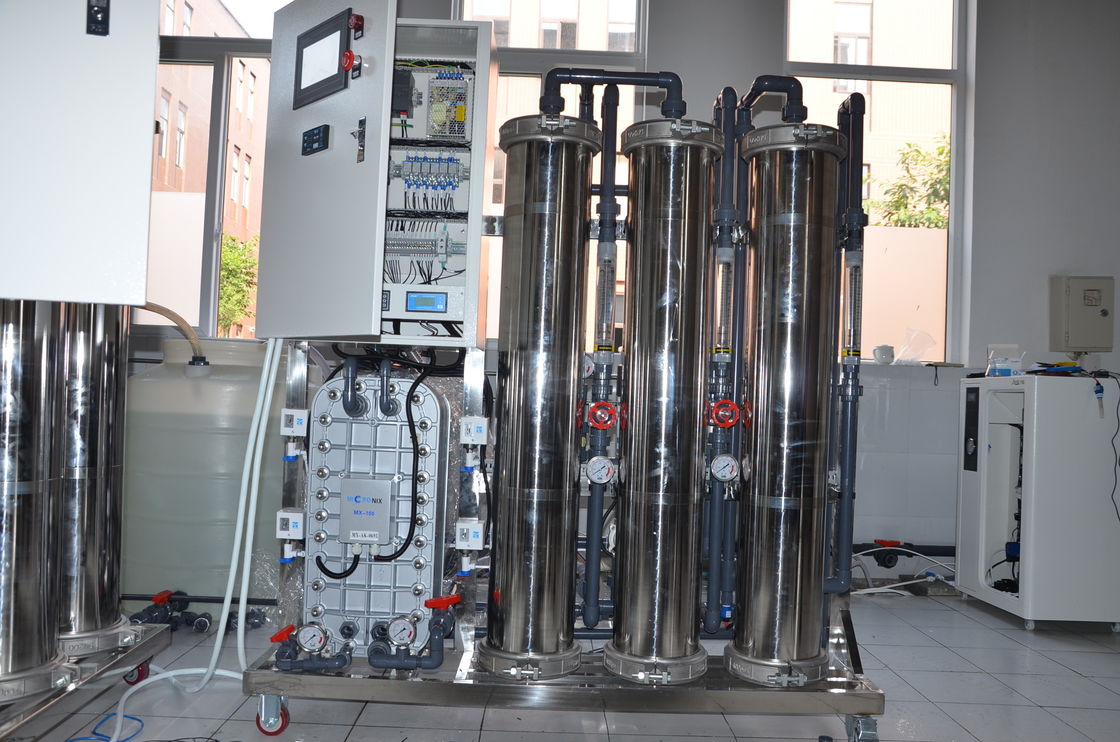

Pictures
