Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-EDI-20TPH
Contact Us
Video

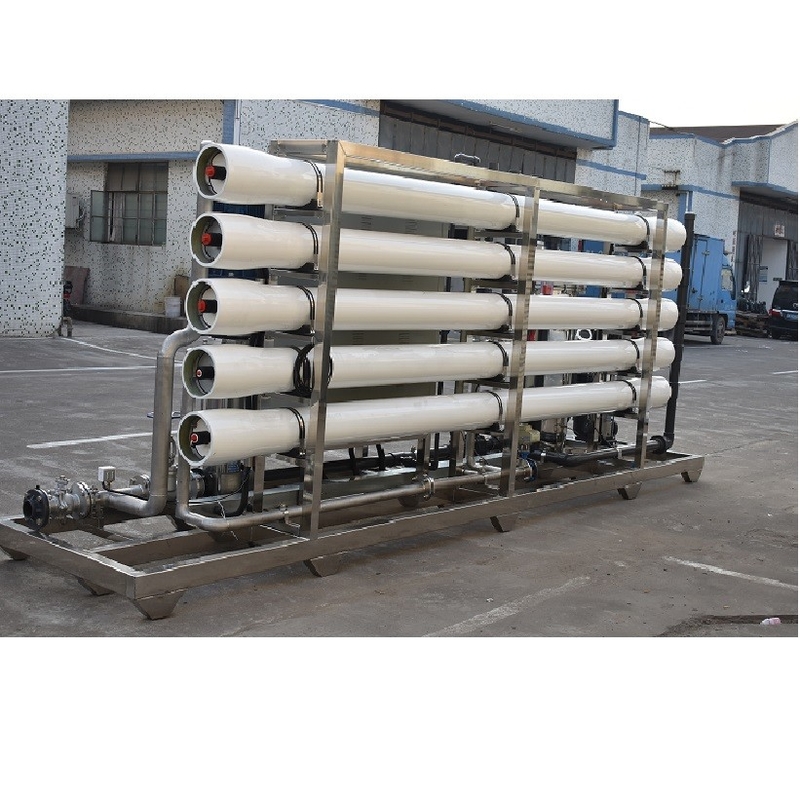

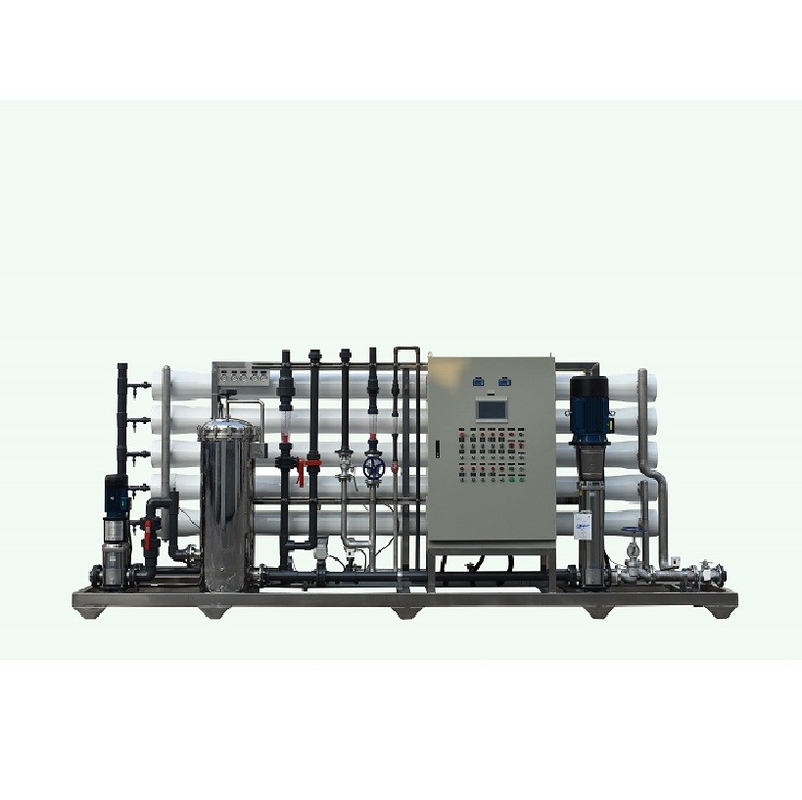

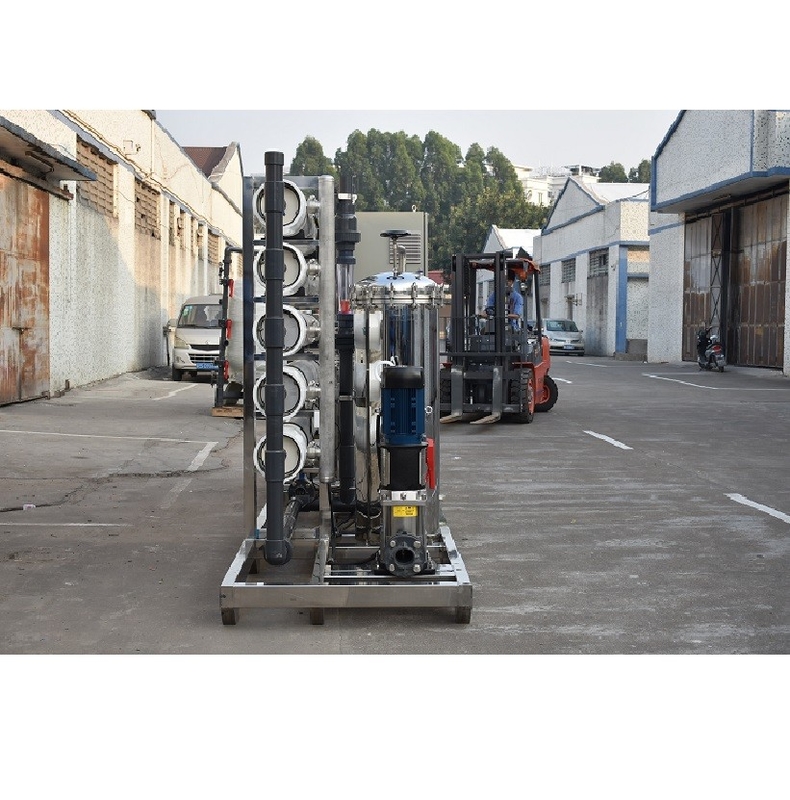

20T Liters Per Hour Edi Water Treatment System Lab Water EDI Water Treatment Plant
The system characteristics
1. High purity efficiency, stable water quality;
2. Low operating cost, simple operation and convenient maintenance;
3, continuous operation and regeneration, can be 24 hours uninterrupted water supply;
4. No waste water treatment problem, no drug regeneration and no drug storage problem
Specification
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | Domestic PUROLITE,Rohm Hass | |||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. |
|||
Reverse Osmosis Ro System Water Features
High-precision filter, the pore size is nanometer, the best water quality Automatic switching of manual/electric control system; With self-check
function, automatic boiling water system without water point, water full stop, no pressure protection and other safety devices; With open RO
membrane automatic cleaning and automatic double cleaning of the water tank, it can extend the service life of the RO membrane; With online
water quality monitoring (conductivity display), flow and pressure online display functions;Equipment integration, simple installation, simple
operation, no special responsibilities; Equipment failure has an automatic alarm function;
High water production, high desalination rate and long service life;
Core components (pumps, reverse osmosis membranes, electronic control systems, etc.) imported/domestic joint venture brands; The equipment
rack is made of stainless steel, the low-pressure pipe is made of UPVC, and the high-pressure pipe is made of SUS304 stainless steel
Flow chart
Pictures
