110W high-strength mercury lamp ultraviolet UV sterilizer RO System Accessories

110W high-strength mercury lamp ultraviolet UV sterilizer RO System Accessories

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-UV

Contact Us

Request A Quote
Product Details
Product Name:
Ultraviolet UV Sterilizer
Water Flow Rate:
0.1-500 Ton/hr
Lamp:
9000-13000 Hrs
Material:
SS304 Or SS316L
Chamber:
Internal & External Polishing Mirror Chamber
Warranty:
10 Years For Stainless Steel Housing,
Sterilizing Rate:
99.99%
Application:
Water Treatment
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description

110W high-strength mercury lamp ultraviolet UV sterilizer RO System Accessories



Specifications:



Model Power Flow rater Inlet/Outlet Operating Pressure Reactor Size (mm)
LD-016 16W 2GPM(0.4m³/Hr) 1/2" male 10bar (145psi) 370*φ63.5
LD-025 25W 6GPM(1.4m³/Hr) 508*φ63.5
LD-028 28W 7GPM(1.6m³/Hr) 590*φ63.5
LD-040 40W 10GPM(2.3m³/Hr) 3/4" male 885*φ63.5
LD-055 55W 12GPM(2.7m³/Hr) 950*φ63.5
LD-110 110W 24GPM(5.5m³/Hr) 1" male/flange 10bar (145psi) 965*φ108
LD-165 165W 36GPM(8m³/Hr) 1 1/2" male/flange 965*φ133
LD-220 220W 48GPM (11m³/Hr) 1 1/2" male/flange
LD-330 330W 72GPM (16m³/Hr) 2" male/flange 965*φ168
LD-440 440W 96GPM (22m³/Hr) 3" male/flange 965*φ219
LD-550 550W 120GPM(30m³/Hr) 4" male/flange 965*φ275
LD-660 660W 144GPM (33m³/Hr)
LD-110 110W 24GPM(5.5m³/Hr) 1" male/flange 10bar (145psi) 965*φ108



Features:

1. Water flow rate: 0.1-500 ton/hr which can meet with different water capacities.

2. Warranty: 10 years warranty for stainless steel housing, other components are 1 year.

3. Material: Use SS304 or SS316L material for reaction chamber, combined with full-automatic welding. All connections are smoothly without any corner;

4. Chamber: Internal & external polishing mirror chamber with high brightness for greatly improved UV intensity and sterilize effect.

5. Thickness: The thickening design of chamber which is strictly tested air & water pressure before shipping. It can withstand 0.8 Mpa, and fully prevents from water leakage.

6. Lamp: Use imported low-pressure but high-strength mercury lamp, which has 9000-13000 hrs service life(Max); assorted with high-efficiency electron ballast, it improves product service life and effect, so that the sterilizing rate up to 99.99%.

7. The whole system adopts America NSF55 standard of "Ultraviolet microbial water treatment equipment" and domestic Ultraviolet sterilizer industry standard for living and drinking water of CJ/T204-2000.

8. Use America Hanovia lamp tube.



Pictures:

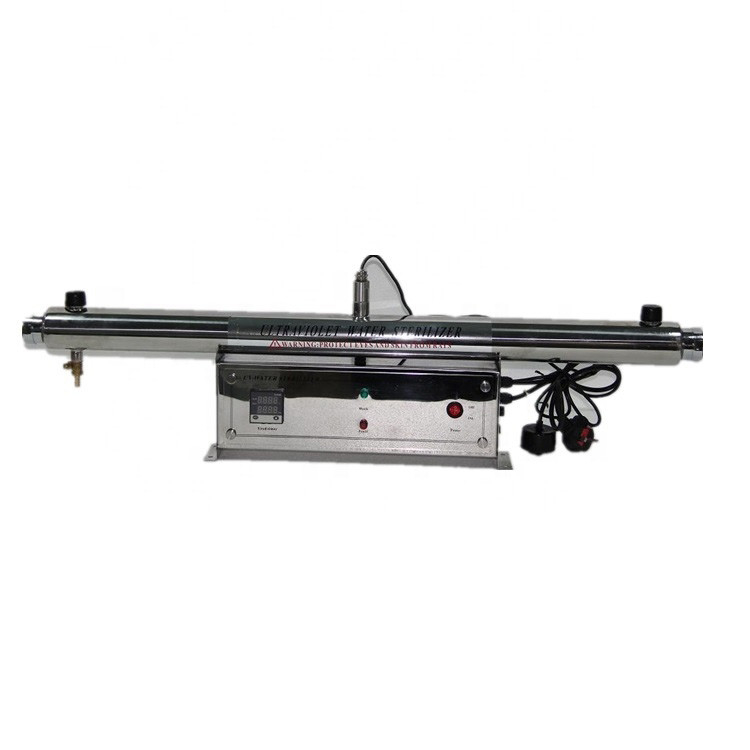

110W high-strength mercury lamp ultraviolet UV sterilizer  RO System Accessories 0

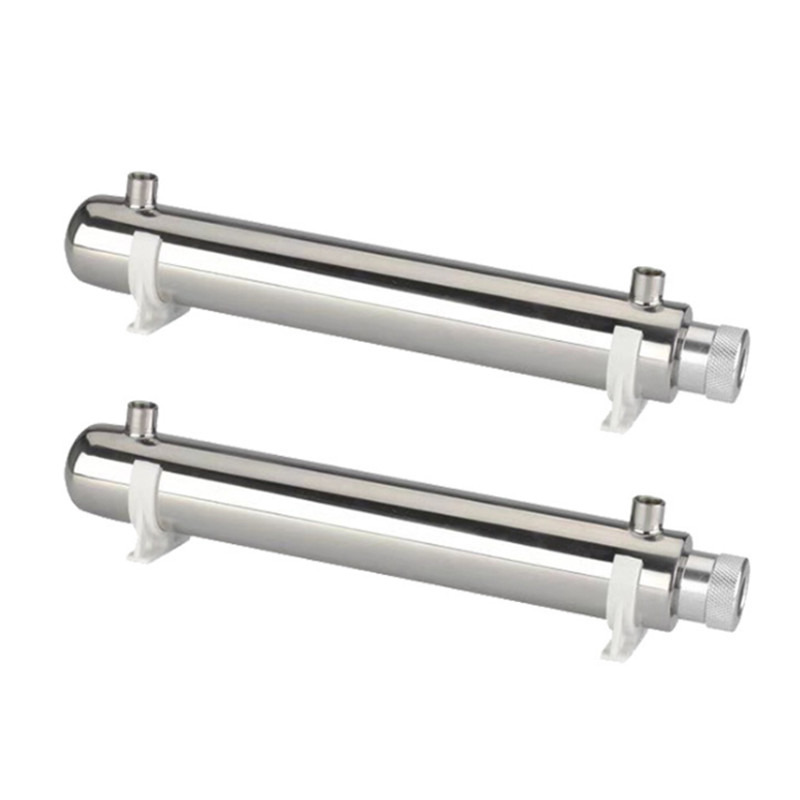

110W high-strength mercury lamp ultraviolet UV sterilizer  RO System Accessories 1
