Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-0.5T
Contact Us
5000LPH Reverse Osmosis Desalination Water Plant Ro System
| Configuration list | |||
| Configuration | Material | SPEC | Brand |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. |
| Value | / | Auto/Manual | Domestic/Pentair etc |
| Filter | quartz sand | 20-80 mesh | Domestic |
| Active Carbon | 600-1100Mg/g | Domestic | |
| Resin | / | Domestic PUROLITE,Rohm Hass | |
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic |
| Pump | SS/Iron/Copper | CNP,Grundfos | |
| Optional | Customize the design according to the customer's URS | ||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. | ||
How reverse osmosis works
1. the original water tank: used to precipitate the large sediment particles in the water and other precipitable substances.At the same time, it buffers the impact caused by unstable water pressure in the original water pipe on the water treatment system.(e.g. pressure sensing reactions caused by water pressure that is too low or too high).
2. booster pump: constant system water supply pressure, stable water supply.
3. multi-medium filter: the filter of multiple filtration layer, the main purpose is to remove the sediment, rust, colloidal material, suspended matter and other particles in the raw water containing more than 20um material, manual valve control or automatic controller can be used for
backwashing, flushing and a series of operations.Ensure the water quality of the equipment and extend the service life of the equipment.
4. precision filter: the use of precision filter in the water residual suspended matter, non-curved particles and colloid and other substances removal, so that RO system and other subsequent equipment operation is safer and more reliable.The filter element is 5um melt-blown filter element, the purpose is to remove the impurities greater than 5um missed by the upper filter unit.To prevent it from entering the reverse osmosis device and damaging the surface of the membrane, thus damaging the desalination performance of the membrane.
5. reverse osmosis system: reverse osmosis device is to use enough pressure to make the solvent in the solution (usually water) through the reverse osmosis membrane (or semi-permeable membrane) and separated, because this process and natural osmosis in the opposite direction, so called reverse osmosis.Reverse osmosis method can adapt to all kinds of raw water with salt content, especially in the water treatment project with high salt content, and can obtain good technical and economic benefits.Reverse osmosis method has the advantages of improved desalination rate, high recovery rate, stable operation, small area, easy operation, reverse osmosis equipment
Flow chart

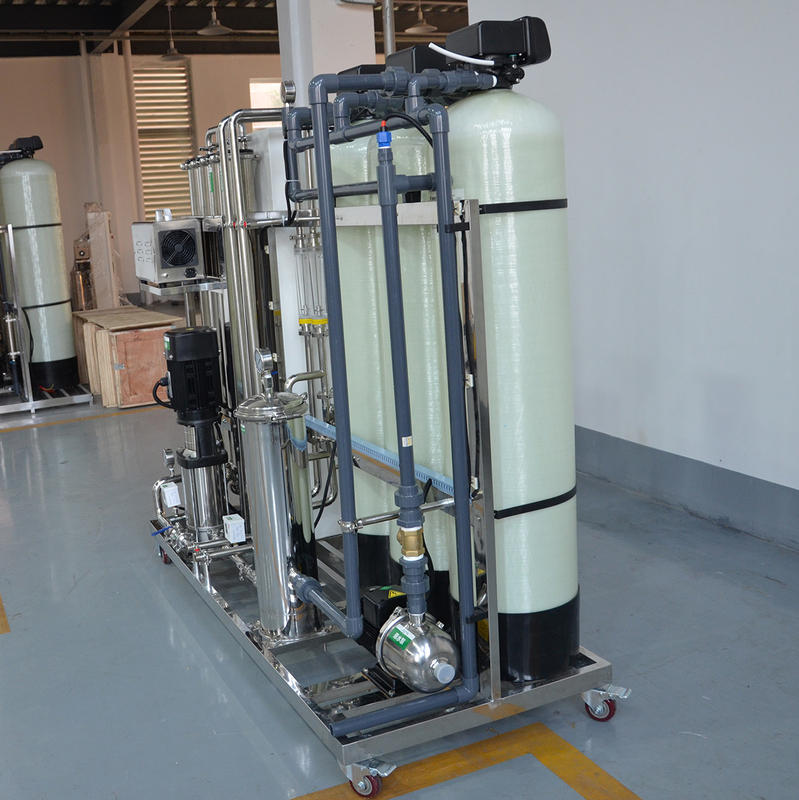

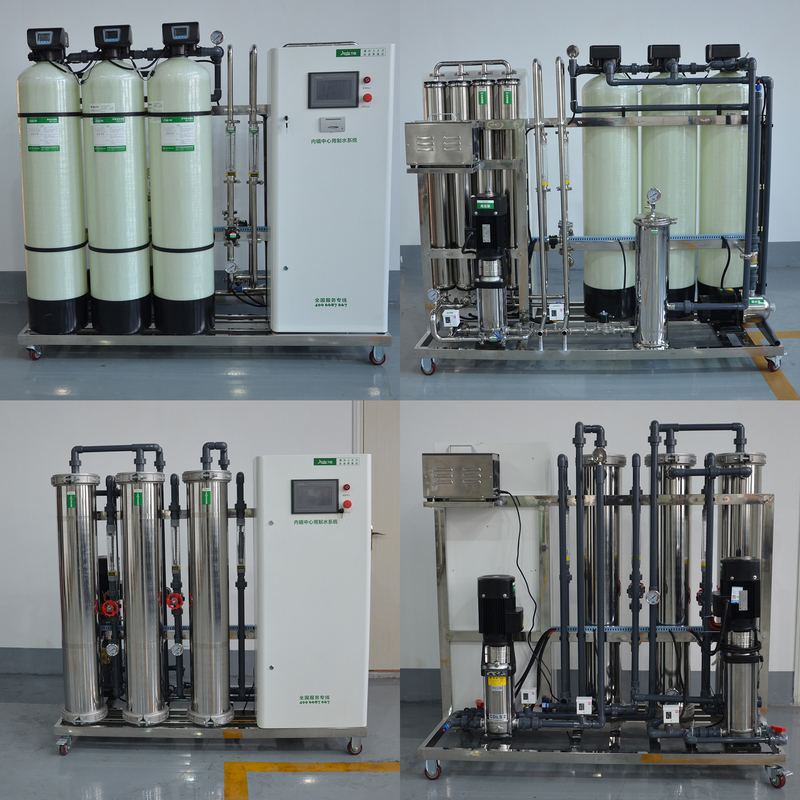

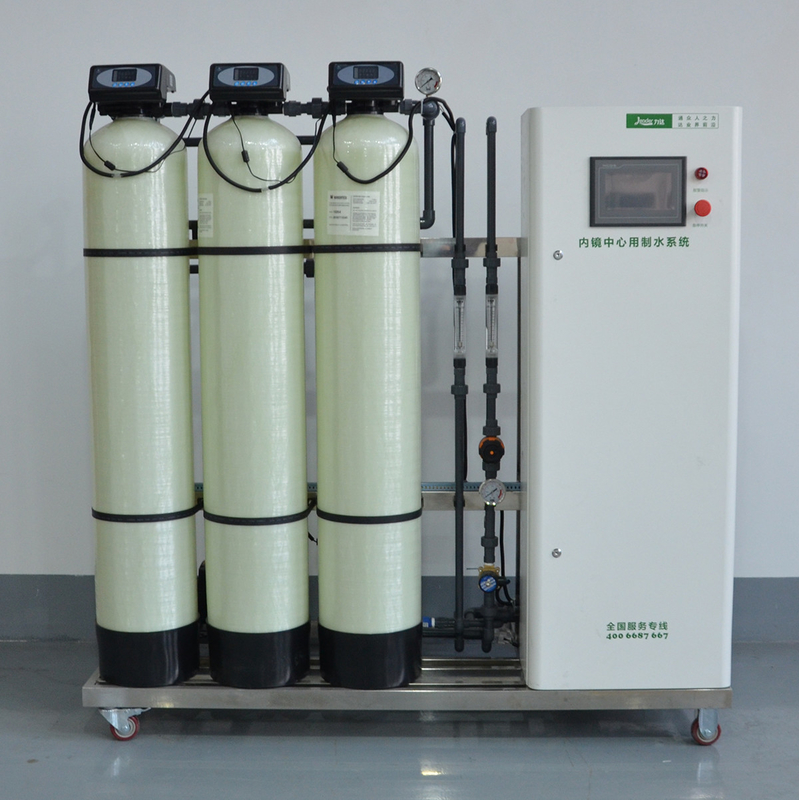

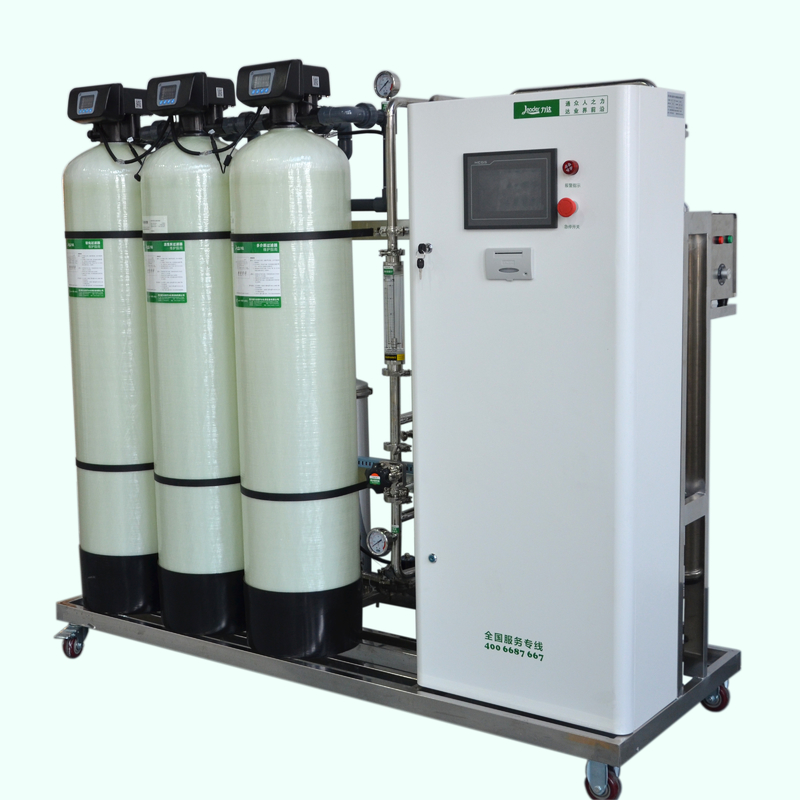

Pictures
