Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-2T
Contact Us

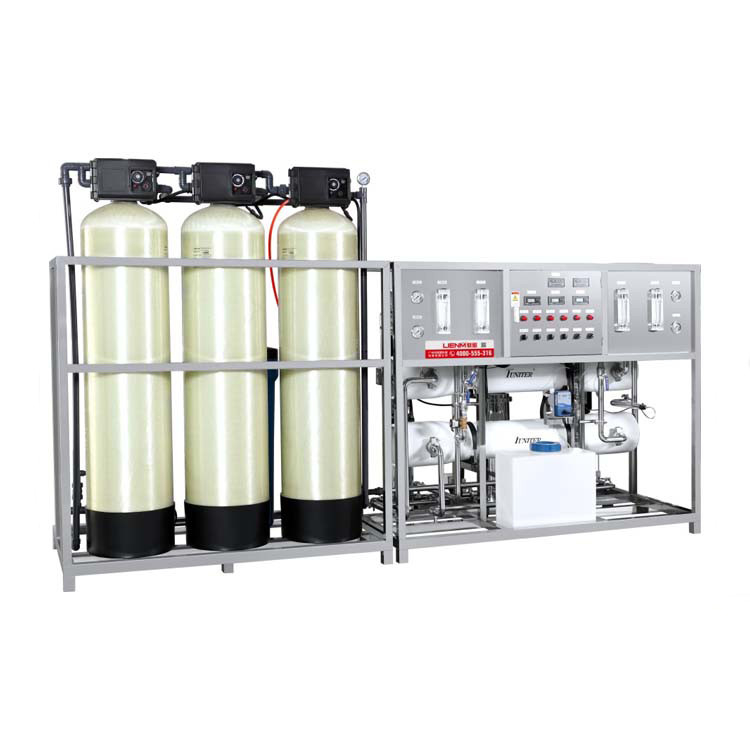

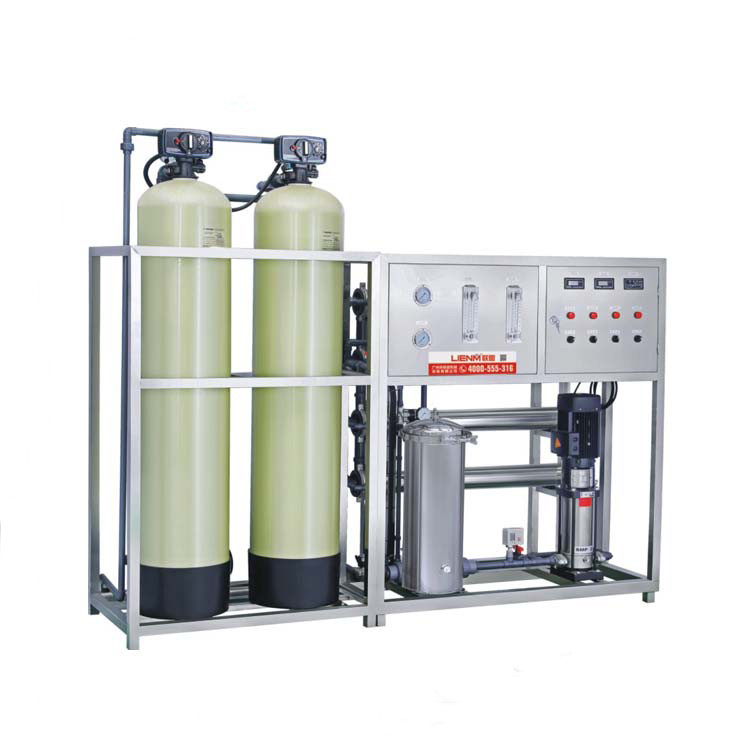

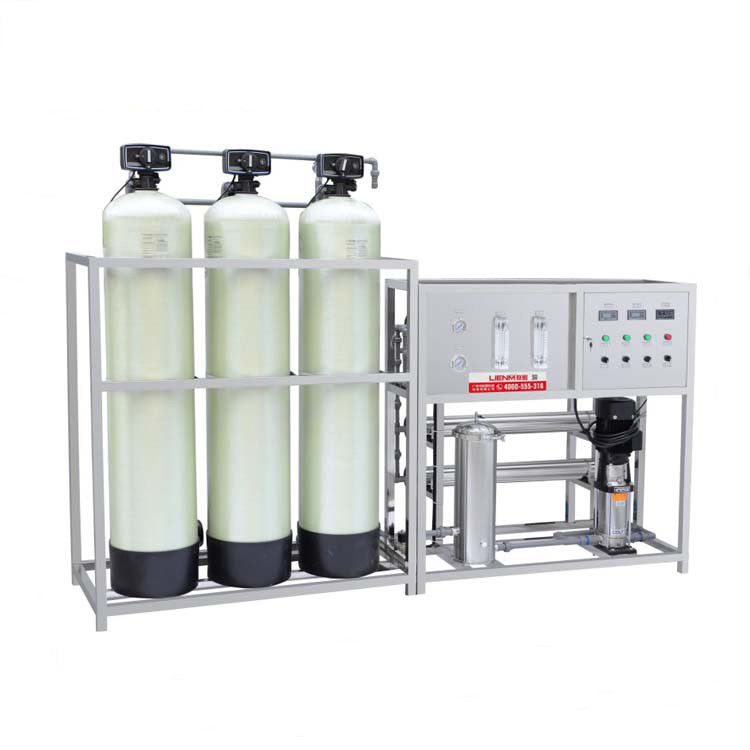

2000LPH Commercial Drinking Water Plant Ro System
| Configuration list | |||
| Configuration | Material | SPEC | Brand |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. |
| Value | / | Auto/Manual | Domestic/Pentair etc |
| Filter | quartz sand | 20-80 mesh | Domestic |
| Active Carbon | 600-1100Mg/g | Domestic | |
| Resin | / | Domestic PUROLITE,Rohm Hass | |
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic |
| Pump | SS/Iron/Copper | CNP,Grundfos | |
| Optional | Customize the design according to the customer's URS | ||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. | ||
Function of each part of water treatment plant
1. feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Flow chart
Pictures
