20L/H Reverse Osmosis Water Filtration System RO Plant

20L/H Reverse Osmosis Water Filtration System RO Plant

20L/H Reverse Osmosis Water Filtration System

Water Filtration System RO Plant

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-I-C-20

Contact Us

Request A Quote
Product Details
Product:
20L/H Reverse Osmosis Water Preparation System RO Plant
Capacity:
20LPH
Core Components::
Pump, Motor, PLC
Function:
Water Purification
Ro Membrane:
Vontron/DOW/Toray
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Material:
FRP
Marketing Type:
Professional Manufacturer
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description
20L/H Reverse Osmosis Water Preparation System RO Plant


specification



Configuration list
Configuration Material SPEC Brand
Tank FRP 1665 Domestic
Value / Auto Domestic
Filter quartz sand 12-20 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element DW30HRLE-440 DOW
Pipe/Value ss304 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.



Configuration parameters:
productivity 20L/h
Size 48*31*60
power 50W
Standard supply voltage 220V/50HZ/5A
Pre-treatment system PP filter,soften filter,active carbon filter
Reverse osmosis stage Single-stage
Production water Ultrapure water

Reverse Osmosis system

1. The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures.
2. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.
3. More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis.
4. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.



Process:

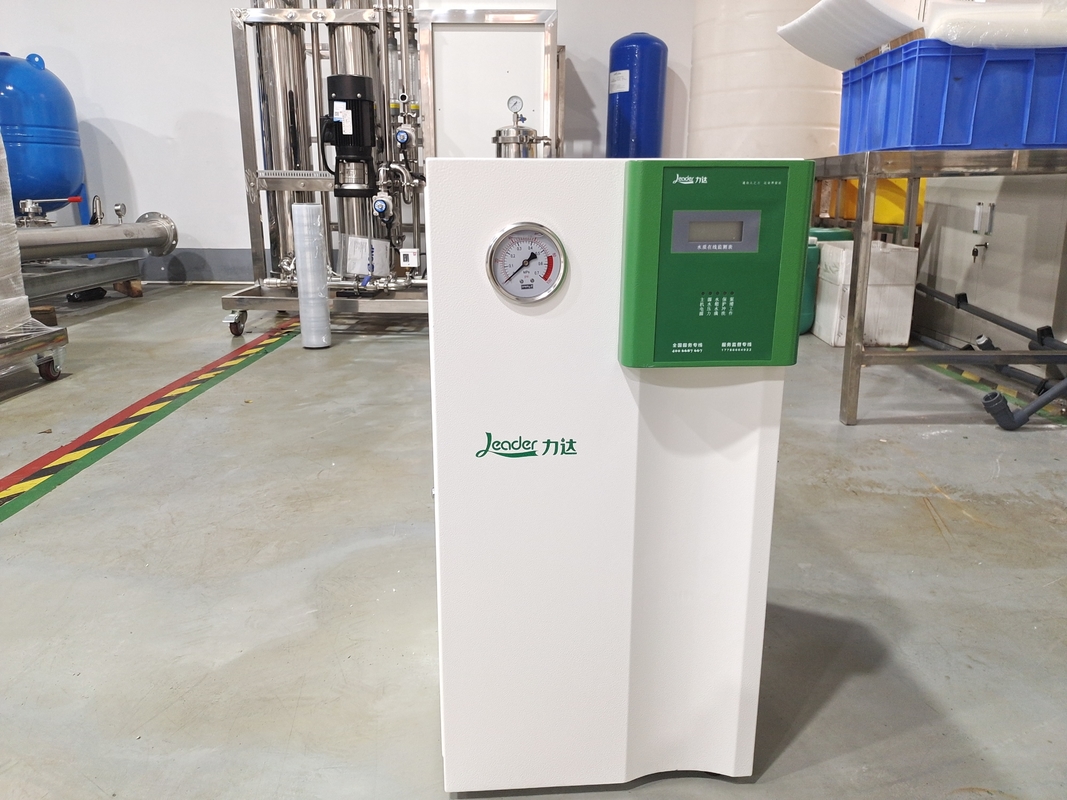

20L/H Reverse Osmosis Water Filtration System RO Plant 0



pictures:

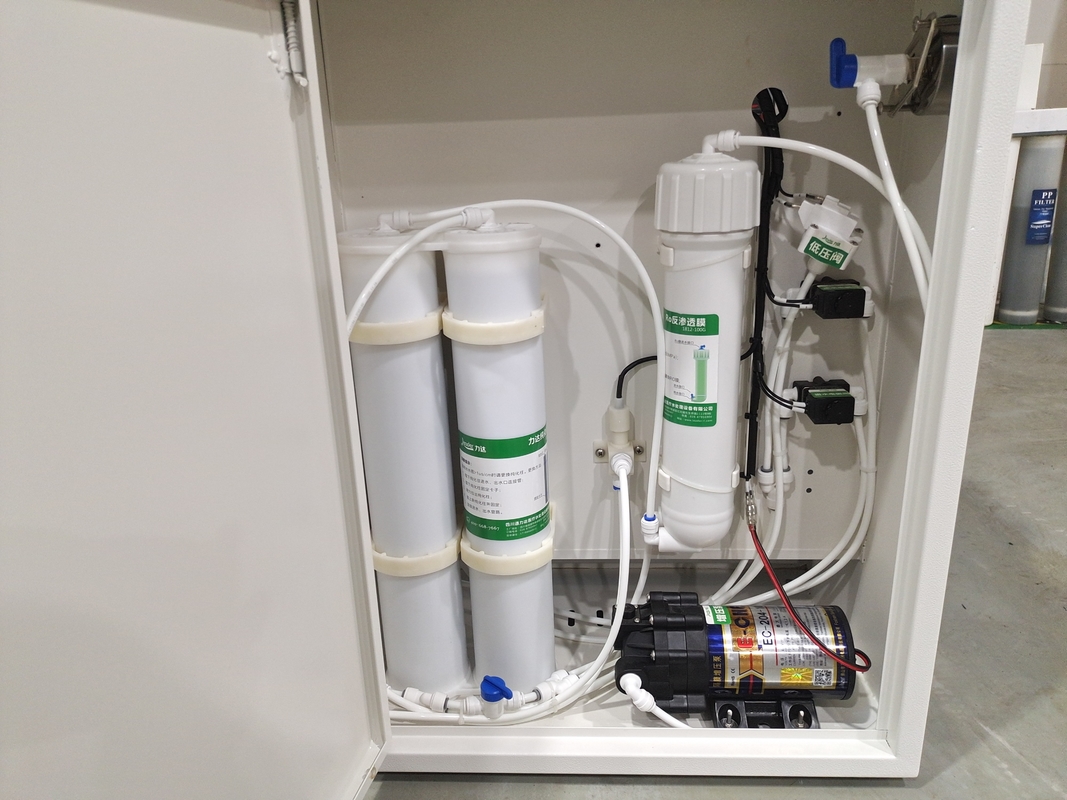

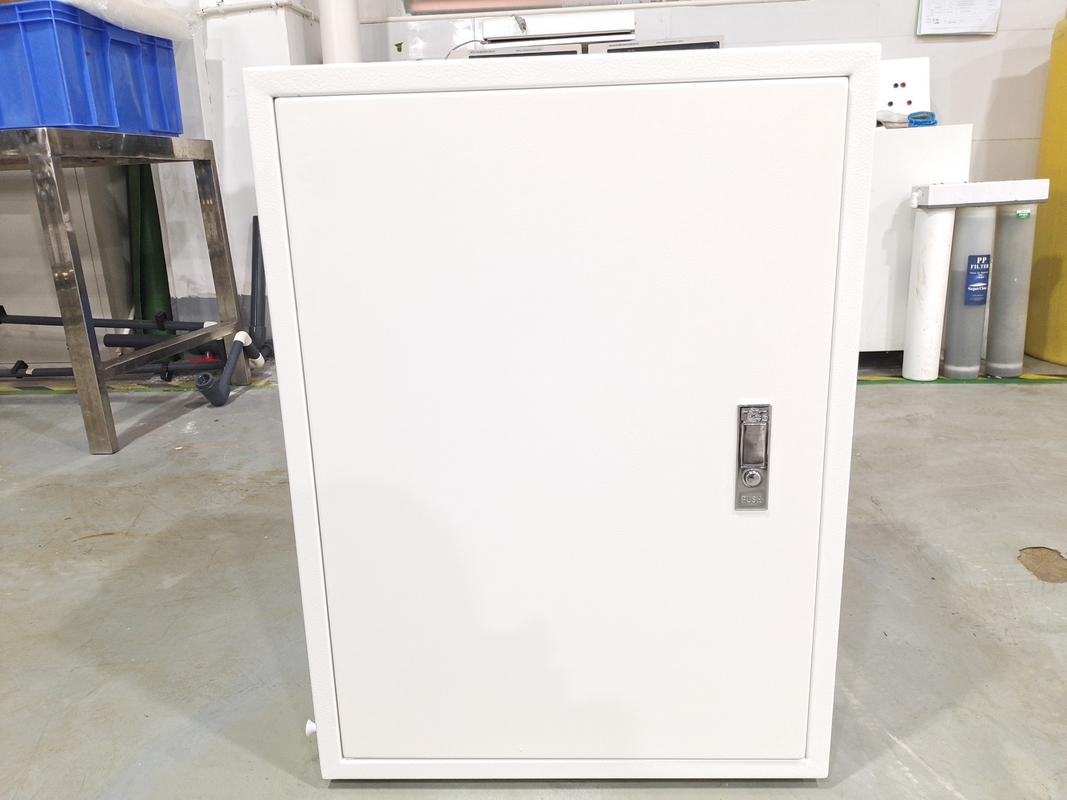

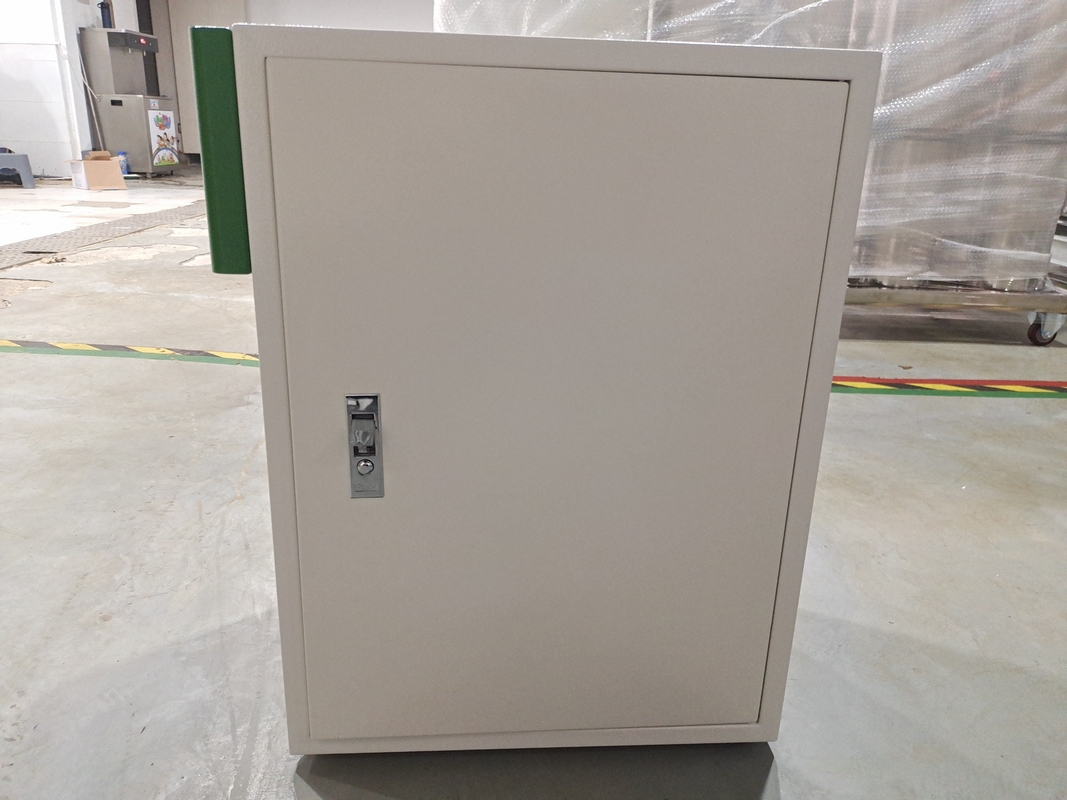

20L/H Reverse Osmosis Water Filtration System RO Plant 1



20L/H Reverse Osmosis Water Filtration System RO Plant 2
