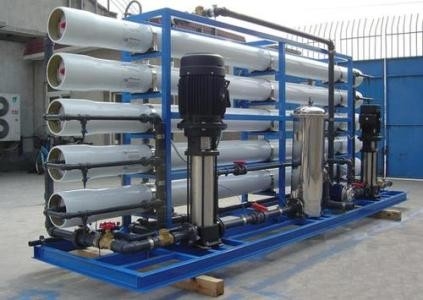

20TPH Water Plant RO System

20TPH Water Plant RO System

20TPH Water Plant RO System

20T/H Water Plant RO System

20TPH commercial reverse osmosis system

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Commercial Water Systems
Core Components::
Pump, Motor, PLC
Quartz Sand/active Carbon/softener
Reverse Osmosis
Ro Membrane:
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
PLC+Touch Screen, PLC, Automatic Controller
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description
20T PH Commercial Ro Water Treatment For Facotry Ro System Water Plant RO System
Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.

Scope of application

(1), electronic industry water: pure water, distilled water, integrated circuit, silicon wafer, display tube and other electronic components flushing;

(2), pharmaceutical industry water: large infusion, injection, tablet, biochemical products, equipment cleaning, etc.;

(3) Industrial process water: chemical circulating water, chemical product manufacturing, etc.;

(4) Power industry boiler supply water: power system of thermal power generation boilers and medium-high pressure boilers in factories and mines;

(5) water for food industry: water for drinking purified water, beverage, beer, liquor, health care products, etc.

(6) Drinking water: bottled water, mineral water, direct drinking water in the community, direct drinking water in the school;

(7), other process water: papermaking, electroplating, printing and dyeing automotive, home appliances coating, coated glass, dressing products, precision chemicals, etc

Product Description
The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.
More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.

Flow chart


20TPH Water Plant RO System 0







20TPH Water Plant RO System 1

20TPH Water Plant RO System 220TPH Water Plant RO System 3
